Sealey DS01 500mm Drill Stand with Cast Iron Base & 65mm Vice - Tool Source
  • SKU: 5054511260120
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock

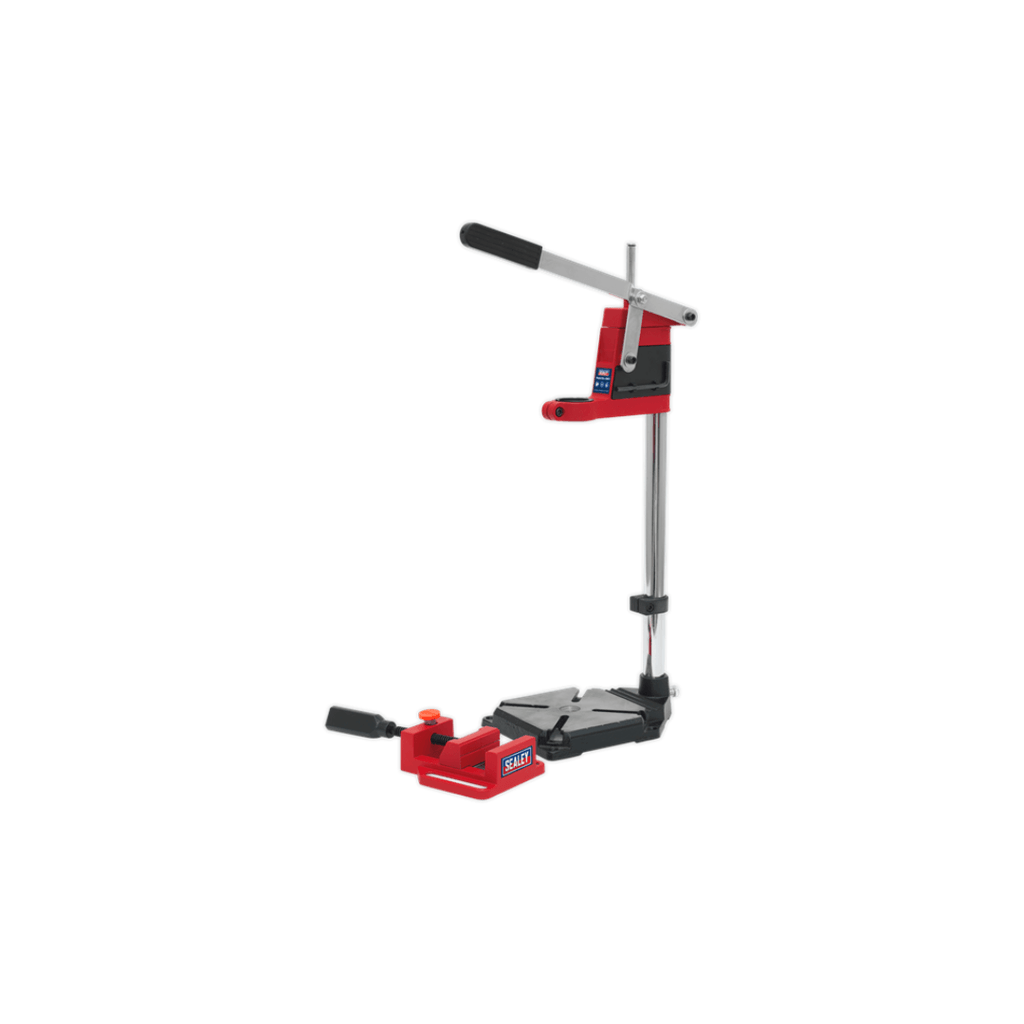

Sealey DS01 500mm Drill Stand with Cast Iron Base & 65mm Vice

€65,00
  • Vendor: Sealey
  • Barcode: 5054511260120

Sealey DS01 500mm Drill Stand with Cast Iron Base & 65mm Vice

Model No. DS01

  • Drill stand with cast iron base for vertical drilling using a hand drill.
  • Supplied with 65mm drill vice which mounts onto the base to secure the workpiece.
  • Features a preset depth control and stop for drilling depths of up to 60mm.
  • For use with hand drills with a collar diameter of Ø38mm if used with the adaptor bush or Ø43mm if used without.
  • Drill vice features a quick jaw release feature to allow fast and easy adjustment to suit the workpiece.

Collar Centre to Column: 120mm

Maximum Distance Collar to Base: 345mm

Column Diameter: Ø25mm

Base Size: 155 x 220mm

Collar Diameter: Ø43mm (Ø38mm with adaptor bush)

Overall Height: 500mm

Vice Specification:

Jaw Width: 65mm

Jaw Depth: 25mm

Jaw Opening: 70mm
