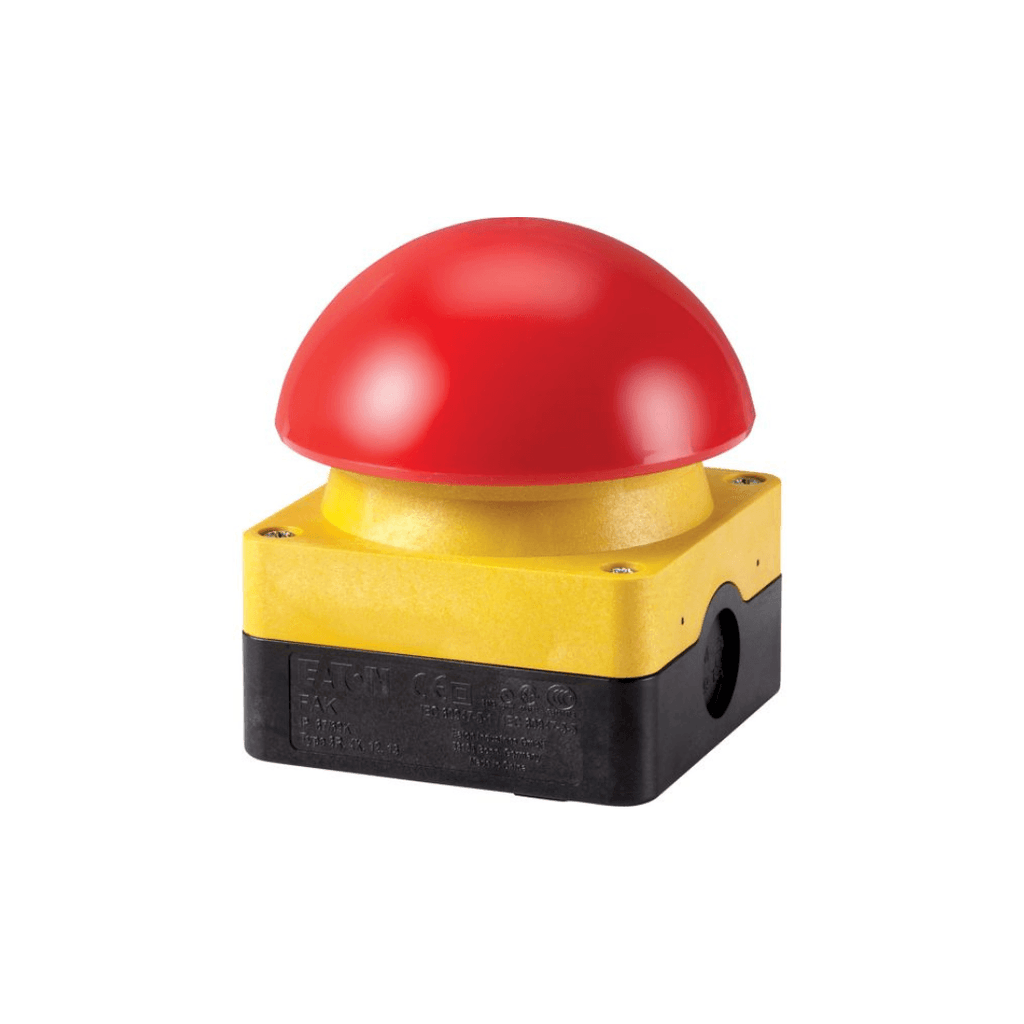

Moeller Palm switch 229748


Moeller Palm switch 229748 FAK-R/V/KC11/IY

Palm switch, 1N/O+1N/C, emergency switching off, surface mounting
EL Number (Norway)
Foot and palm switch, Complete unit, Function: maintained, Description: Pull to release, Emergency stop pushbutton tamper-proof to ISO 13850/EN 418, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Contacts Notes = safety function, by positive opening to IEC/EN 60947-5-1, Color Button: Red, Color enclosure top: Yellow, Color Enclosure base: Black, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-5, VDE 0660, Degree of protection, IEC/EN 60529: IP66, IP67, IP69K, Mounting position: As required.
Part no.:FAK-R/V/KC11/IY
Product Length/Depth:100 millimetre
Product height:85 millimetre
Product width:85 millimetre
Product weight:0.32 kilogram
Certifications:CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA:IEC/EN 60947-5-5
IEC/EN 60947-5, VDE 0660
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL File No.: E29184
Product Tradename: FAK
Product Type: Palm switch
