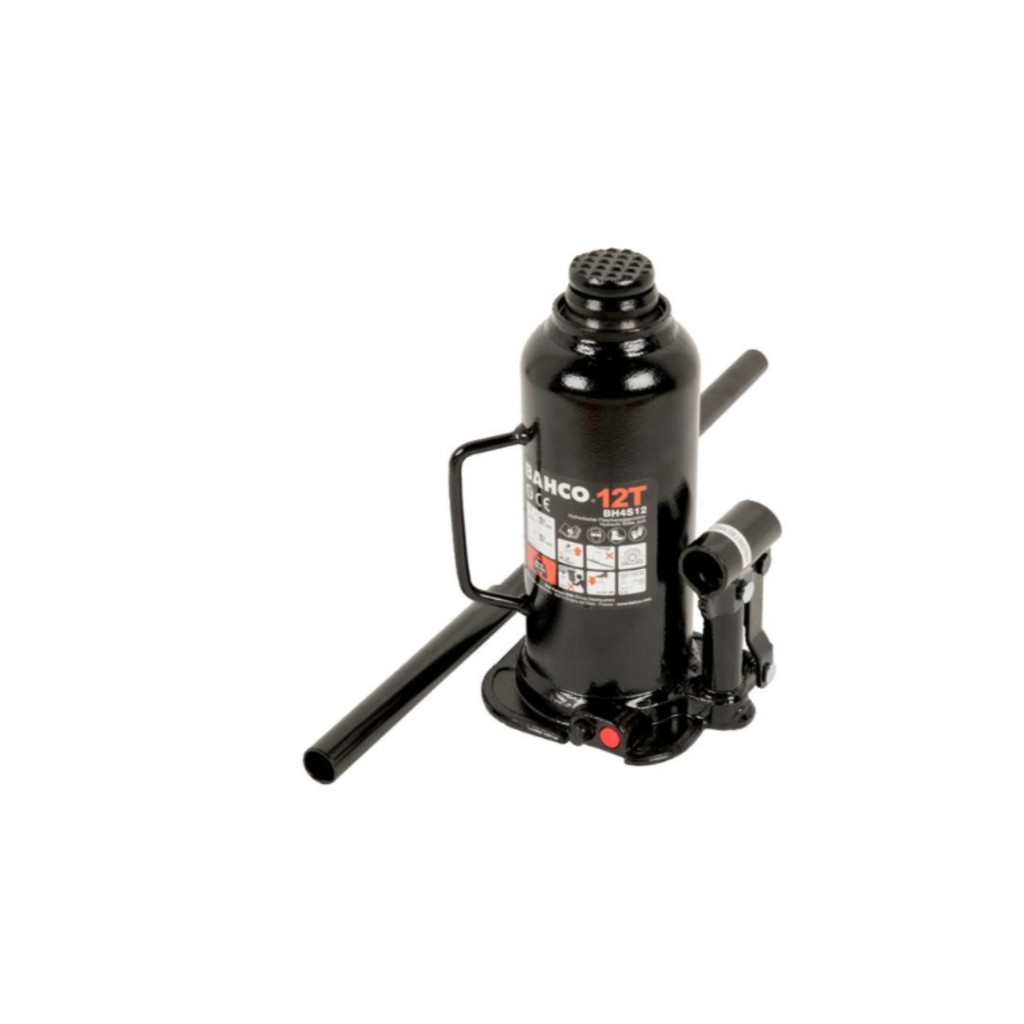

The Bahco BH4G12 is a heavy-duty hydraulic bottle jack with a 12 tonne lifting capacity. It is a compact, powerful jack for lifting vehicles, machinery, and other heavy loads. Its welded steel construction is built for hard, professional use.
The jack lifts up to 12 tonnes (12,000 kg). Its height range runs from 230 mm to 440 mm, and an extension screw lets you fine-tune the lift height. A serrated saddle grips the load securely to help stop it slipping.
A welded structure improves performance and prevents oil leaks. The steel forged base gives excellent wear and impact resistance, so the jack stands up to heavy workshop and site use. It works reliably in temperatures from -20°C to 50°C.
A built-in safety valve stops the ram from over-extending, which protects the piston from damage. The jack is CE certified by an official independent technical inspection association. It is designed for use in the vertical position.
| Brand | Bahco |
| Model | BH4G12 |
| Type | Hydraulic bottle jack |
| Maximum load | 12 tonne (12,000 kg) |
| Minimum height | 230 mm |
| Maximum height | 440 mm |
| Height adjustment | Extension screw |
| Saddle | Serrated |
| Base | Steel forged |
| Safety valve | Yes |
| Operating temperature | -20°C to 50°C |
| Weight | 6.3 kg |
| Certification | CE (Directive 2006/42/EC) |
| Orientation | Vertical use only |
A jack is a lifting device, not a support. Always secure the load on suitable axle stands before working underneath it.
